ESP32 : charts + gauges + switches + slider

usage de Arduino IDE 1.8.19
* Mise à Jour Mai 2025 version 5 Charts +4 gauges +1slider
( 30/05/2025 OK en local et via reseau , suite passage freebox Revolution en Fibre optique)
* Mise à Jour Juin 2025 : ESP32 : 6 charts + 5 gauges + 3 switches + 1 slider (30/06/2025)

* Test recompilation avec ARDUINO IDE 2.3.6
(suite remplacement Freebox F.O 26/09/2025.)
Trop de problemes avec versions de librairies et versions core ESP32
.......Retour à Arduino 1.8.19
* Test recompilation sur ESP32 Jaune, avec BMP280...01/11/2025



..........à suivre : circuit imprimé ..et inclure MCP23017 avec 8 BP & 8 Leds

Hardware :

ESP32 + BMP05 + AM2302 (=DHT11) + DS18B20 + OLED LCD + MCP23017+ UART + WIFI
Description Module ESP32 2x15 pins

prototype pour test	schema 20240531

Connection sur reseau Smartphone Redminote 11
Point d'acces Wifi_Mobile
Hot spot portable
Appareils connectés : 2
ASUS_CM6431 ....20:68:9d:04:2b:cf
esp32-5472F4 .......7c:9e:bd:54:72:f4

Reseau activé sur PC ASUS CM6341 WIN10 SSID : Redmi Note 11 Protocole : Wi-Fi 4 (802.11n) Type de sécurité : WPA2 - Personnel Bande passante réseau : 2,4 GHz Canal réseau : 2 Adresse IPv4 : 192.168.15.35 Serveurs DNS IPv4 : 212.27.40.241 212.27.40.240 Fabricant : Ralink Technology, Corp. Description : 802.11n Wireless LAN Card Version du pilote : 5.0.57.1 Adresse physique (MAC) : 20-68-9D-04-2B-CF

PC : scanner wifi

propriété : Redmi Note 11

Application ESP32 : 5 charts + 4 gauges + 1 slider (30/01/2024)

Affichage sur page web et Coolterminal :

page web affichée sur PC ASUS CM6341	traçage temperatures sur coolTerm	log sur Cool terminal

CoolTerm peut AUSSI tracer l'evolution de datas !....

log terminal

ets Jun 8 2016 00:22:57

rst:0x1 (POWERON_RESET),boot:0x17 (SPI_FAST_FLASH_BOOT)
configsip: 0, SPIWP:0xee
clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00
mode:DIO, clock div:1
load:0x3fff0030,len:1184
load:0x40078000,len:13260
load:0x40080400,len:3028
entry 0x400805e4
PWM test sur led 15
ESP32_Bleu_5_Charts_4_instruments_2024-02 version:2024-0304
Board type definition : ESP32 Dev Module
ESP32 Vroom 32 DevkitV1 30 pins (Bleu sur COM 11))
with DS18B20,BMP085,Cpt,AM2302 Temp,Humidity,OLED,PWM
Led Rouge sur D19 Led verte sur D18 Led Bleue sur D15
DHT11-AM2302 sur D5
Sonde temper.OWS DS18B20 AA56C13 81401 sur D4
I2C Bus sur D21 (SDA) et D22 (SCL)
BMP085 + OLED SSD1306 sur le bus I2C

Init I2C1 bus
Recherche devices presents sur le bus I2C SCL=22 SDA=21

I2C device found at address 0x3C OLED SSD1306
I2C device found at address 0x77 BMP 085 Pression
Trouve 2 devices sur le Bus I2C

.. Fin de test I2C bus

Sensors begin

Compteur= 0
Press. 987 mBar
Problemo BMPOK bad!
Scan devices on OWS BUS
i= 0
ROM = 0x28, 0xAA, 0x56, 0xC1, 0x38, 0x14, 0x01, 0x40
Chip = DS18B20


DS18B20 = 21.25
DHT11 Temp.: 21.80
Humid : 58.70
SSD1306 allocation OK
init Wifi

Connecting
SSID: Redmi Note 11
PWD: k9m5jfurubn
Connecting to WiFi ...
192.168.15.145
[*] Network information for Redmi Note 11
[+] BSSID : 4E:99:E7:D1:A9:11
[+] Gateway IP : 192.168.15.243
[+] Subnet Mask : 255.255.255.0
[+] RSSI : -35 dB
[+] ESP32 IP : 192.168.15.145
WiFi mac@ : 7C:9E:BD:54:72:F4

SPIFFS mounted successfully
Get and print time from ntpServer

Friday, May 31 2024 15:41:33
Day of week: Friday
Month: May
Day of Month: 31
Year: 2024
Hour: 15
Minute: 41
Second: 33

init Websocket
Heure: 15:41 Cpt= 0 , BMP085 P. 987 mBar , Humid: 58.80,Temp: 21.90,DS18B20.0 = 21.25 C , Slider = 0 .
Cpt= 1 , BMP085 P. 987 mBar , Humid: 58.80,Temp: 21.90,DS18B20.0 = 21.25 C , Slider = 0 .
Cpt= 2 , BMP085 P. 987 mBar , Humid: 58.80,Temp: 21.90,DS18B20.0 = 21.25 C , Slider = 0 .
WebSocket client #1 connected from 192.168.15.35
Cpt= 3 , BMP085 P. 987 mBar , Humid: 58.80,Temp: 21.90,DS18B20.0 = 21.25 C , Slider = 0 .
Cpt= 4 , BMP085 P. 987 mBar , Humid: 58.80,Temp: 21.90,DS18B20.0 = 21.25 C , Slider = 0 .

deplacement slider
WebSocket client #1 EVT Data .<... supprimé 01/06
Msg :1s21> ......Problemo
214 ....Problemo
21 ....Problemo

......etc ...

Cpt= 7 , BMP085 P. 987 mBar , Humid: 58.80,Temp: 21.90,DS18B20.0 = 21.25 C , Slider = 961 .
WebSocket client #1 EVT Data <.... supprimé 01/06
Msg :1s100....Problemo
1023....Problemo
100....Problemo

Heure: 15:42 Cpt= 8 , BMP085 P. 987 mBar , Humid: 58.80,Temp: 21.90,DS18B20.0 = 21.25 C , Slider = 1023 WebSocket client #1 EVT Data
Msg :1s0
0
0
Cpt= 9 , BMP085 P. 987 mBar , Humid: 58.80,Temp: 21.90,DS18B20.0 = 21.25 C , Slider =0

// affichage schema jpeg !
WebSocket client #1 disconnected
WebSocket client #2 connected from 192.168.15.35
0 .


Nota : Problemo de non retour position Slider ..vers ESP
...... résolu ! ....gràce à une aide bienvenue sur le Forum RNTlab.com

il subsiste cependant un léger inconvenient :

message (interne) websocket , en rouge, se rajoute ...lors de l'action sur le slider !..
provient de WebSocket client #1 EVT Data
-----------------------------------------------------------------------------------------------------------------------------------------------------
Cpt= 1 , BMP085 P. 991 mBar , Humid: 50.70,Temp: 18.50,DS18B20.0 = 18.44 C , Slider = 0 .
Msg :1s22
225
22
Cpt= 2 , BMP085 P. 991 mBar , Humid: 50.70,Temp: 18.50,DS18B20.0 = 18.31 C , Slider = 225 .

Msg :1s52
531
52
Cpt= 3 , BMP085 P. 991 mBar , Humid: 51.40,Temp: 19.20,DS18B20.0 = 18.38 C , Slider = 531 .
Cpt= 4 , BMP085 P. 991 mBar , Humid: 50.80,Temp: 18.50,DS18B20.0 = 18.31 C , Slider = 531 .
-----------------------------------------------------------------------------------------------------------------------------------------------------

https://github.com/paulfjujo/ESP32-Charts-Gauge-Slider
https://github.com/paulfjujo/ESP32-Charts-Gauge-Slider/blob/main/PB_socket_Msg_code.jpg



A suivre .. ici
https://rntlab.com/question/how-to-cancel-websocket-message/


SOFTWARE :
directory : ESP32_Rouge_WROOM32_2x15pins_5_Charts_4_gauges_1slider_2024-053
avec un sous directtory \data !
une fois compilé le fichier *.ino,
le terminal YAT (port COM) doit etre préalablement désactivé ! , car utilisé par Arduino.IDE
charger le resultat (L'application) dans l' ESP32
puis, ensuite , charger (les fichiers ) contenus dans data !
puis reset ou ré-activation du port COM terminal pour lancer l'application



projet complet :

Zip avec datas:
ESP32_Rouge_WROOM32_2x15pins_5_Charts_4_gauges_1slider_2024-053.zip
ESP32_Rouge_WROOM32_2x15pins_5_Charts_4_gauges_1slider_2024-053.ino

_ESP32_Bleu_WROOM32_2x15pins_5_Charts_4_gauges_1slider_2024-06.zip
_ESP32_Bleu_WROOM32_2x15pins_5_Charts_4_gauges_1slider_2024-06.ino

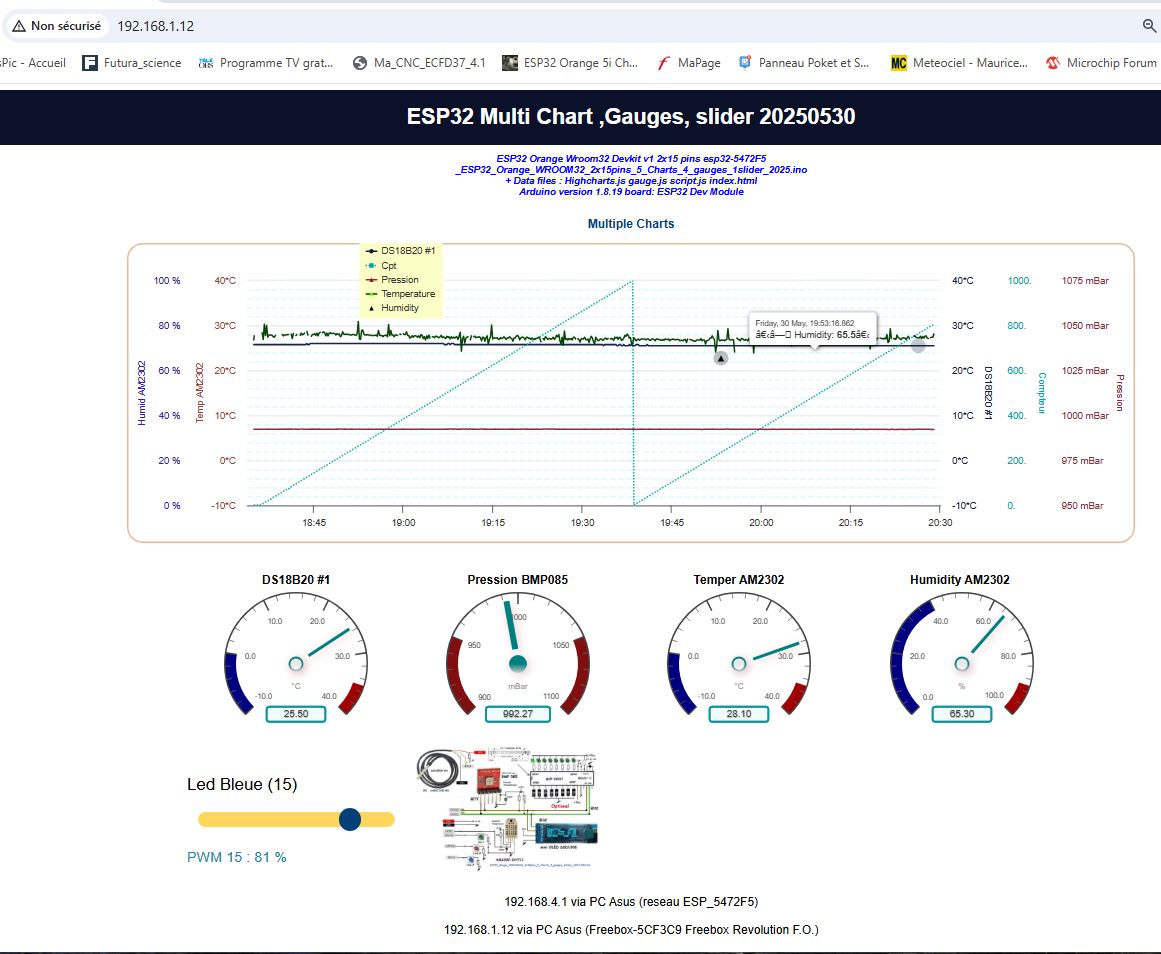

Affichage page web correspondante


Nota:

Connection sur reseau Smartphone Redminote 11 Point d'acces Wifi_Mobile Hot spot portable : Appareils connectés : 2 ASUS_CM6431 20:68:9d:04:2b:cf esp32-5472F4.... 7c:9e:bd:54:72:f4 ....ROUGE ..........acces page web, avec 192.168.15.145 mais Connection sur reseau Smartphone Redminote 11 Point d'acces Wifi_Mobile Hot spot portable : Appareils connectés : 2 ASUS_CM6431 20:68:9d:04:2b:cf esp32-8DC994.... 08:3a:f2:8d:c9:94.... BLEU ............acces page web, avec 192.168.15.30 ============================== Phone S62 ESP sur PC

sur mobile Redminote 11

adresse acces differente suivant le module utilisé...

..... Revu Nov 2024 ..

modif SSID reseau mobile :
RedmiNote11, PWD inchangé

modif pour : suppression Msg si modification position Slider :

void handleWebSocketMessage(void *arg, uint8_t *data, size_t len)
{
AwsFrameInfo *info = (AwsFrameInfo*)arg;
if (info->final && info->index == 0 && info->len == len && info->opcode == WS_TEXT)
{
data[len] = 0;
message = (char*)data;
// 01-11-2024
// Serial.print("Msg :"); Serial.println(message);
if (message.indexOf("1s") >= 0) // pwmSlider1
{
sliderValue1 = message.substring(2);
dutyCycle1 = map(sliderValue1.toInt(), 0, 100, 0, 1023);
// Serial.println(dutyCycle1);
// Serial.println( sliderValue1);
}
}
}

Reactivation NTP :

Get and print time from ntpServer

Friday, November 01 2024 19:39:49
Day of week: Friday
Month: November
Day of Month: 01
Year: 2024
Hour: 19
Minute: 39
Second: 49

init Websocket
Heure: 19:39 Cpt= 0 , BMP085 P. 997 mBar , Humid: 74.40,Temp: 22.30,DS18B20.0 = 21.00 C , Slider = 0 .
WebSocket client #1 connected from 192.168.251.35
Cpt= 1 , BMP085 P. 997 mBar , Humid: ??? ,Temp: ??? ,DS18B20.0 = 21.00 C , Slider = 0 .
Cpt= 2 , BMP085 P. 997 mBar , Humid: 76.00,Temp: 21.80,DS18B20.0 = 21.25 C , Slider = 0 .
Cpt= 3 , BMP085 P. 997 mBar , Humid: 76.80,Temp: 21.80,DS18B20.0 = 21.00 C , Slider = 0 .

nota: DS18B20 ..OK !

init Wifi Connecting SSID: RedmiNote11 PWD: k9m5jfurubn Connecting to WiFi ..... 192.168.251.145

version 2024-1101

Updated Software

sur reseau Mobile Redmi Note 11
_ESP32_Rouge_WROOM32_2x15pins_5_Charts_4_gauges_1slider_2024-11.zip
_ESP32_Rouge_WROOM32_2x15pins_5_Charts_4_gauges_1slider_2024-11.ino
compilation_2024-1101.log

Mise à Jour Mai 2025,suite passage sur Fibre Optique
avec freebox Revolution
le cuivre (Adsl2) ..c'est fini ..ou presque!
4 jauges, 6 charts,1 slider consigne PWM ,OLED SSD1306 , DHT11, BMP085 ,DS18B20




acces WIFI_AP_STA :
module ESP32 ID :
ESP_5472F5
192.168.4.1
acces via reseau freebox
SSID : Freebox-5CF3C9
Pwd : "mi..................mu
192.168.1.12

..mais Probleme lecture DS18B20 ?....(was OK en 2024 !)

(16:57:05.914) ESP32_Orange_WROOM32_2x15pins_5_Charts_4_gauges_1slider_ version:2025-0527
(16:57:05.914) Board type definition : ESP Wrover Kit (all versions)

Probleme avec DS18B20 résolu ... erreur de choix Board sur Arduino 1.8.19
Tools -> Board -> definition :
ESP32 Dev Module au lieu de ESP Wrover Kit (all versions)

Nota : test OK , avec 2 sondes DS18B20 sur le bus OWS (pin D4)

SOFTWARE :
_ESP32_Orange_WROOM32_2x15pins_5_Charts_4_gauges_1slider_2025-0530.ino

Version avec 6 charts, 5 gauges, 3 switches (cde 3leds) , 1 slider (PWM)
(04/06/2025)
Usage de Web Sockets

Hardware idem version 5 charts
..mais avec leds en plus sur les sorties 15,18,19
sortie PWM déplacée en 23

2 capteurs OWS DS18B20
3 switches (pour commande des sorties D15,D18,D19)
1 sorties PWM sur D23, commande 0 -100% par slider
1 mesure de pression (I2C) BMP085
1 Mesure d'humidité AM2302 (DHT11)
1 Mesure de temperature AM2302 (DHT11)
mini Ecran OLED I2C SD1306


Historique 6 charts glissant ..
1 voie reservée au compteur de boucle programme 0 à 1000
2 Mesures de temperatures DS18B20
Mesure de temperature AM2302 de -10 a +40°C
Mesure Humidité 0 à 100%
Mesure de Pression 900 à 1100 mbar

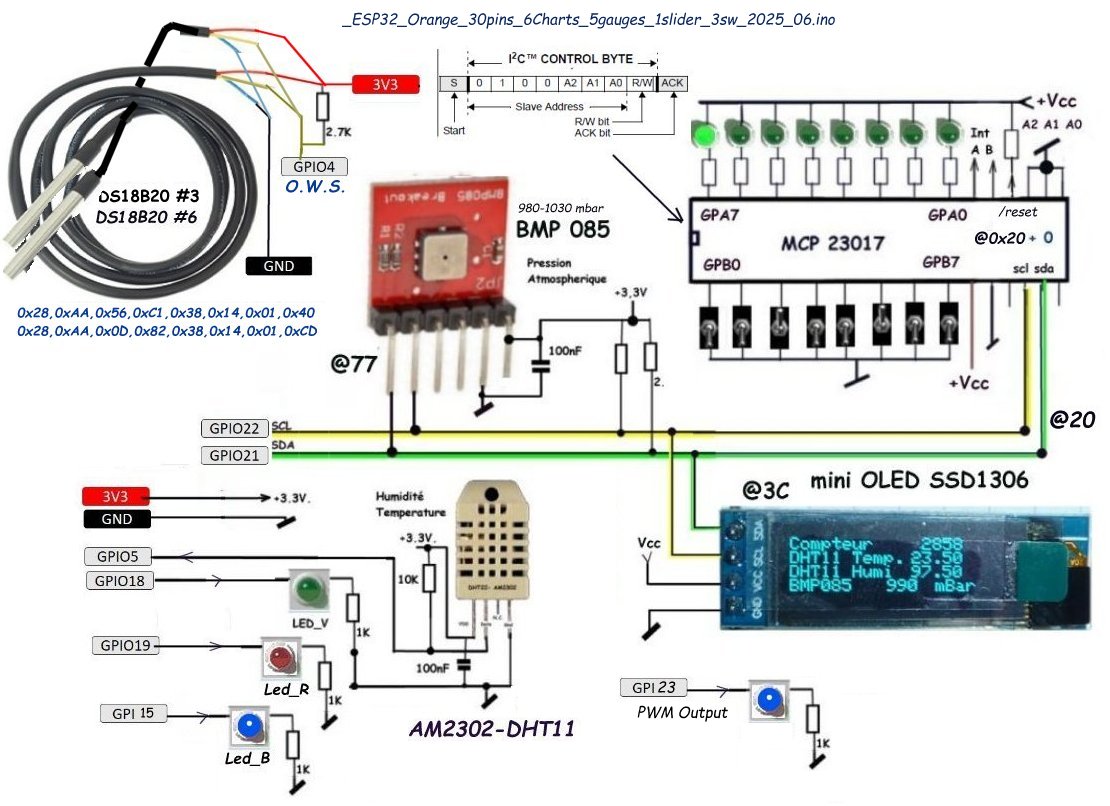

Schema	Prototype Hardware

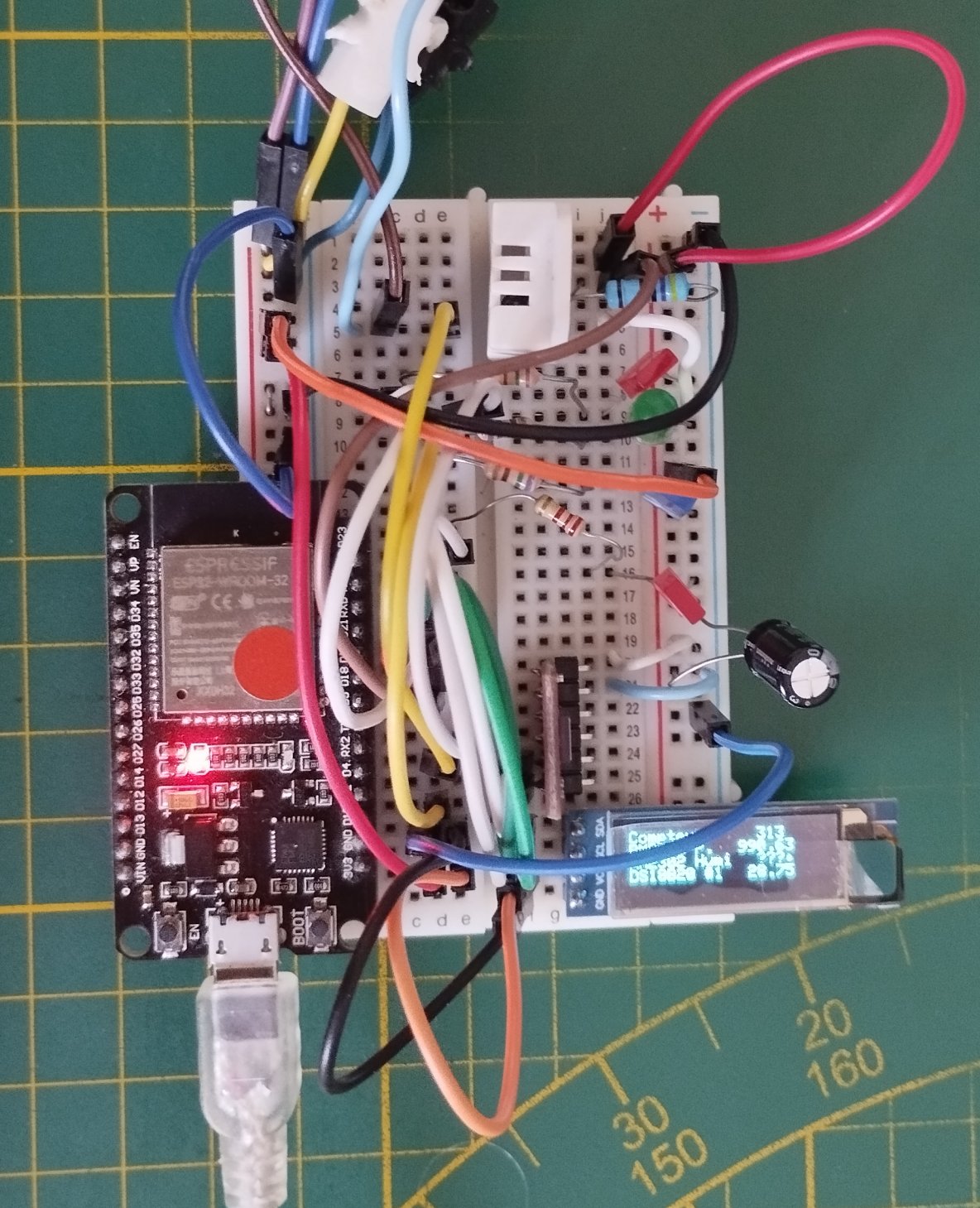

zoom Hardware

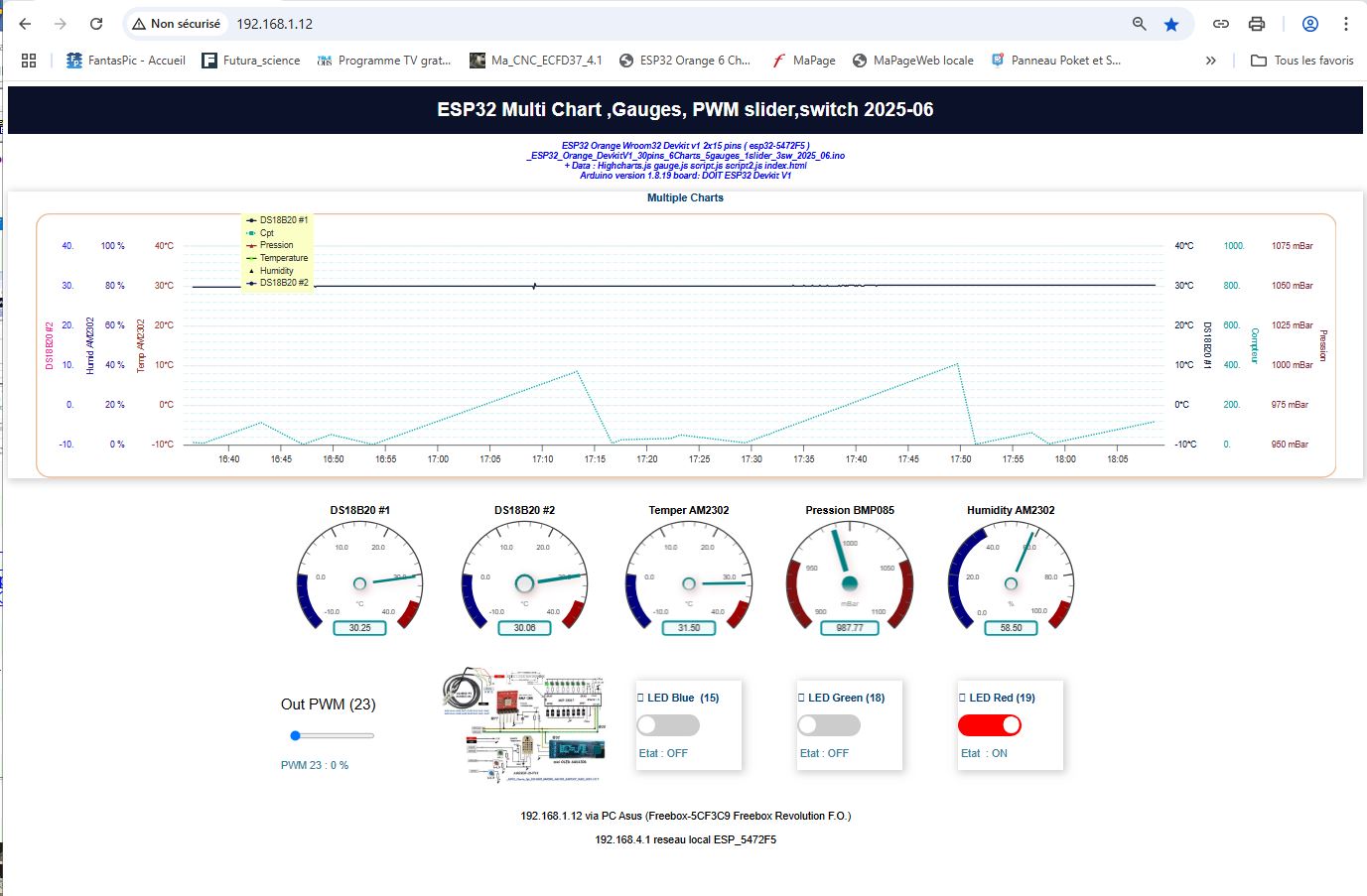

Appli accessible via ma Freebox ou via reseau local ESP

au lancement programme :

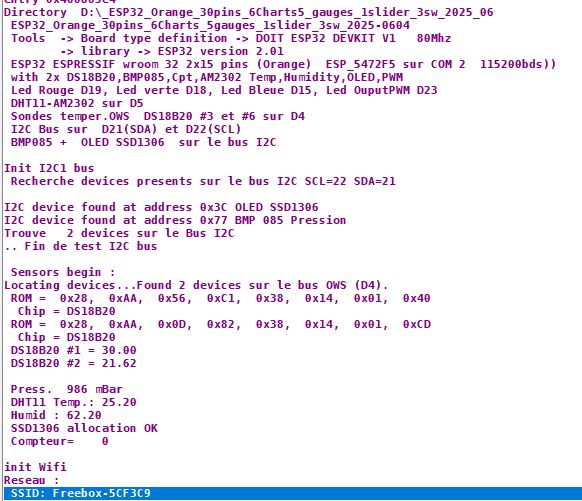

ets Jun 8 2016 00:22:57 rst:0x1 (POWERON_RESET),boot:0x17 (SPI_FAST_FLASH_BOOT) configsip: 0, SPIWP:0xee clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00 mode:DIO, clock div:1 load:0x3fff0030,len:1284 load:0x40078000,len:12836 load:0x40080400,len:3032 entry 0x400805e4 Directory D:\_ESP32_Orange_30pins_6Charts5_gauges_1slider_3sw_2025_06 ESP32_Orange_30pins_6Charts_5gauges_1slider_3sw_2025-0604 Tools -> Board type definition -> DOIT ESP32 DEVKIT V1 80Mhz -> library -> ESP32 version 2.01 ESP32 ESPRESSIF wroom 32 2x15 pins (Orange) ESP_5472F5 sur COM 2 115200bds)) with 2x DS18B20,BMP085,Cpt,AM2302 Temp,Humidity,OLED,PWM Led Rouge D19, Led verte D18, Led Bleue D15, Led OuputPWM D23 DHT11-AM2302 sur D5 Sondes temper.OWS DS18B20 #3 et #6 sur D4 I2C Bus sur D21(SDA) et D22(SCL) BMP085 + OLED SSD1306 sur le bus I2C Init I2C1 bus Recherche devices presents sur le bus I2C SCL=22 SDA=21 I2C device found at address 0x3C OLED SSD1306 I2C device found at address 0x77 BMP 085 Pression Trouve 2 devices sur le Bus I2C .. Fin de test I2C bus Sensors begin : Locating devices...Found 1 devices sur le bus OWS (D4). ROM = 0x28, 0xFF, 0x47, 0x15, 0x81, 0x16, 0x03, 0x24 Chip = DS18B20 DS18B20 #1 = 28.25 DS18B20 #2 =-9.99 Press. 991 mBar DHT11 Temp.: ???<TAB> Humid : ???<TAB> SSD1306 allocation OK Compteur= 0 init Wifi Reseau : SSID: Freebox-5CF3C9 PWD: mittebant-lacrymula.-fimbri-inmensum Start WIFI_AP_STA Connecting to WiFi ........ 192.168.1.12 [*] Network information for [+] BSSID : 34:27:92:F2:47:F0 [+] Gateway IP : 192.168.1.254 [+] Subnet Mask : 255.255.255.0 [+] RSSI : -72 dB [+] ESP32 IP : 192.168.1.12 192.168.1.12 WiFi mac@ : 7C:9E:BD:54:72:F4 SPIFFS mounted successfully Get and print time from ntpServer Monday, June 30 2025 10:34:42 Day of week: Monday Month: June Day of Month: 30 Year: 2025 Hour: 10 Minute: 34 Second: 42 init Websocket jsonString : {"DS18B20":"28.25","Cpt":"0","DS18B202":"-127.00","Temperature":"nan","Pression":"990.93","Humidity":"nan"} Heure: 10:34 Cpt= 0 , BMP085 P. 991 mBar , Humid: ???<TAB>,Temp: ???<TAB>,DS#1 = 28.25 C , Slider = 0 . jsonString : {"DS18B20":"28.25","Cpt":"1","DS18B202":"-127.00","Temperature":"nan","Pression":"990.92","Humidity":"nan"} WebSocket client #1 connected from 192.168.1.4<LF>WebSocket client #2 connected from 192.168.1.4<LF>jsonString : {"DS18B20":"28.25","Cpt":"1","DS18B202":"-127.00","Temperature":"nan","Pression":"990.91","Humidity":"nan"} Cpt= 1 , BMP085 P. 991 mBar , Humid: ???<TAB>,Temp: ???<TAB>,DS#1 = 28.25 C , Slider = 0 . jsonString : {"DS18B20":"28.25","Cpt":"2","DS18B202":"-127.00","Temperature":"nan","Pression":"990.91","Humidity":"nan"} Cpt= 2 , BMP085 P. 991 mBar , Humid: ???<TAB>,Temp: ???<TAB>,DS#1 = 28.25 C , Slider = 0 .

SOFTWARE :

_ESP32_Orange_30pins_6Charts_5gauges_1slider_3sw_2025_0630.zip
_ESP32_Orange_30pins_6Charts_5gauges_1slider_3sw_2025_0630.ino
data_20250604.zip
ESP32_30pins_6Charts5_gauges_1slider_3sw_2025_0630-YAT.log


à suivre ...... inclusion du MCP23017 8E/8S !

Test recompilation avec ARDUINO IDE 2.3.6

Suite panne Freebox F.O ,remplacement de celle ci le 26/09/2025
donc, avec un nouveau SSID et nouveau PWD
necessite de recompiler le programme ...
désinstallation de Arduino 1.8.9 et Installation de Arduino IDE 2.3.6
rangement des datas dans le disque D: ..car disque C: trop chargé , reset 20Go dispo
elimination de Arduino et Arduino15 sur C: ==> recupération espace => reste alors dispo sur c:\ ....31Go

Deployement Arduino IDE 2.3.6. installé sur D:

Directory of D:\Arduino\
Taille coocupée par D:\Arduino -> 8.12Go

001. [Arduino - Reference_files]
002. [Arduino IDE]
003. [libraries]
004. [LITTLEFS_test]
005. [tools]
006. Arduino - Reference.html
----------------

Taille coccupée par Arduino15 -> 16Go

Arduno IDE 2.3.6
....files
.......Preferences
..................sketchbook location : D:\Arduino

Source programme en
D:\_ESP32_2025_2024\_ESP32_Wroom_Orange_30pins_6Charts_5gauges_1slider_3sw_2025_09\
_ESP32_Wroom_Orange_30pins_6Charts_5gauges_1slider_3sw_2025_09

Librairies utilisées:

Using library AsyncTCP at version 1.1.4 in folder: D:\Arduino\libraries\AsyncTCP
Using library ESP Async WebServer at version 1.2.3 in folder: D:\Arduino\libraries\ESPAsyncWebServer
Using library FS at version 2.0.0 in folder: D:\Arduino15\packages\esp32\hardware\esp32\2.0.17\libraries\FS
Using library WiFi at version 2.0.0 in folder: D:\Arduino15\packages\esp32\hardware\esp32\2.0.17\libraries\WiFi
Using library Adafruit GFX Library at version 1.12.0 in folder: D:\Arduino\libraries\Adafruit_GFX_Library
Using library Adafruit BusIO at version 1.17.4 in folder: D:\Arduino\libraries\Adafruit_BusIO
Using library Wire at version 2.0.0 in folder: D:\Arduino15\packages\esp32\hardware\esp32\2.0.17\libraries\Wire
Using library SPI at version 2.0.0 in folder: D:\Arduino15\packages\esp32\hardware\esp32\2.0.17\libraries\SPI
Using library Adafruit SSD1306 at version 2.5.15 in folder: D:\Arduino\libraries\Adafruit_SSD1306
Using library Adafruit BMP085 Library at version 1.2.1 in folder: D:\Arduino\libraries\Adafruit_BMP085_Library
Using library Adafruit Unified Sensor at version 1.1.5 in folder: D:\Arduino\libraries\Adafruit_Unified_Sensor
Using library DHT sensor library for ESPx at version 1.18 in folder: D:\Arduino\libraries\DHT_sensor_library_for_ESPx
Using library LittleFS at version 2.0.0 in folder: D:\Arduino15\packages\esp32\hardware\esp32\2.0.17\libraries\LittleFS
Using library SPIFFS at version 2.0.0 in folder: D:\Arduino15\packages\esp32\hardware\esp32\2.0.17\libraries\SPIFFS
Using library Arduino_JSON at version 0.2.0 in folder: D:\Arduino\libraries\Arduino_JSON
Using library OneWire at version 2.3 in folder: D:\Arduino\libraries\OneWire
Using library DallasTemperature at version 3.8.0 in folder: D:\Arduino\libraries\DallasTemperature


Compilation :

FQBN: esp32:esp32:esp32:CPUFreq=80,LoopCore=0 Using board 'esp32' from platform in folder: D:\Arduino15\packages\esp32\hardware\esp32\2.0.17 Using core 'esp32' from platform in folder: D:\Arduino15\packages\esp32\hardware\esp32\2.0.17 cmd /c if exist "D:\\_ESP32_2025_2024\\_ESP32_Wroom_Orange_30pins_6Charts_5gauges_1slider_3sw_2025_09\\partitions.csv" COPY /y "D:\\_ESP32_2025_2024\\_ESP32_Wroom_Orange_30pins_6Charts_5gauges_1slider_3sw_2025_09\\partitions.csv" "C:\\Users\\Paul\\AppData\\Local\\arduino\\sketches\\475ABBE31B4A19F7BB46EB55C1A3EC75\\partitions.csv" cmd /c if not exist "C:\\Users\\Paul\\AppData\\Local\\arduino\\sketches\\475ABBE31B4A19F7BB46EB55C1A3EC75\\partitions.csv" if exist "D:\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.17\\variants\\esp32\\partitions.csv" COPY "D:\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.17\\variants\\esp32\\partitions.csv" "C:\\Users\\Paul\\AppData\\Local\\arduino\\sketches\\475ABBE31B4A19F7BB46EB55C1A3EC75\\partitions.csv" cmd /c if not exist "C:\\Users\\Paul\\AppData\\Local\\arduino\\sketches\\475ABBE31B4A19F7BB46EB55C1A3EC75\\partitions.csv" COPY "D:\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.17\\tools\\partitions\\default.csv" "C:\\Users\\Paul\\AppData\\Local\\arduino\\sketches\\475ABBE31B4A19F7BB46EB55C1A3EC75\\partitions.csv" cmd /c IF EXIST "D:\\_ESP32_2025_2024\\_ESP32_Wroom_Orange_30pins_6Charts_5gauges_1slider_3sw_2025_09\\bootloader.bin" ( COPY /y "D:\\_ESP32_2025_2024\\_ESP32_Wroom_Orange_30pins_6Charts_5gauges_1slider_3sw_2025_09\\bootloader.bin" "C:\\Users\\Paul\\AppData\\Local\\arduino\\sketches\\475ABBE31B4A19F7BB46EB55C1A3EC75\\_ESP32_Wroom_Orange_30pins_6Charts_5gauges_1slider_3sw_2025_09.ino.bootloader.bin" ) ELSE ( IF EXIST "D:\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.17\\variants\\esp32\\bootloader.bin" ( COPY "D:\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.17\\variants\\esp32\\bootloader.bin" "C:\\Users\\Paul\\AppData\\Local\\arduino\\sketches\\475ABBE31B4A19F7BB46EB55C1A3EC75\\_ESP32_Wroom_Orange_30pins_6Charts_5gauges_1slider_3sw_2025_09.ino.bootloader.bin" ) ELSE ( "D:\\Arduino15\\packages\\esp32\\tools\\esptool_py\\4.5.1\\esptool.exe" --chip esp32 elf2image --flash_mode dio --flash_freq 80m --flash_size 4MB -o "C:\\Users\\Paul\\AppData\\Local\\arduino\\sketches\\475ABBE31B4A19F7BB46EB55C1A3EC75\\_ESP32_Wroom_Orange_30pins_6Charts_5gauges_1slider_3sw_2025_09.ino.bootloader.bin" "D:\\Arduino15\\packages\\esp32\\hardware\\esp32\\2.0.17\\tools\\sdk\\esp32\\bin\\bootloader_qio_80m.elf" ) ) esptool.py v4.5.1 Creating esp32 image... Merged 1 ELF section Successfully created esp32 image. cmd /c if exist "D:\\_ESP32_2025_2024\\_ESP32_Wroom_Orange_30pins_6Charts_5gauges_1slider_3sw_2025_09\\build_opt.h" COPY /y "D:\\_ESP32_2025_2024\\_ESP32_Wroom_Orange_30pins_6Charts_5gauges_1slider_3sw_2025_09\\build_opt.h" "C:\\Users\\Paul\\AppData\\Local\\arduino\\sketches\\475ABBE31B4A19F7BB46EB55C1A3EC75\\build_opt.h" cmd /c if not exist "C:\\Users\\Paul\\AppData\\Local\\arduino\\sketches\\475ABBE31B4A19F7BB46EB55C1A3EC75\\build_opt.h" type nul > "C:\\Users\\Paul\\AppData\\Local\\arduino\\sketches\\475ABBE31B4A19F7BB46EB55C1A3EC75\\build_opt.h" cmd /c type nul > "C:\\Users\\Paul\\AppData\\Local\\arduino\\sketches\\475ABBE31B4A19F7BB46EB55C1A3EC75/file_opts" Detecting libraries used... D:\Arduino15\packages\esp32\tools\xtensa-esp32-elf-gcc\esp-2021r2-patch5-8.4.0/bin/xtensa-esp32-elf-g++ -DHAVE_CONFIG_H -DMBEDTLS_CONFIG_FILE="mbedtls/esp_config.h" -DUNITY_INCLUDE_CONFIG_H -DWITH_POSIX -D_GNU_SOURCE -DIDF_VER="v4.4.7-dirty" -DESP_PLATFORM -D_POSIX_READER_WRITER_LOCKS -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/newlib/platform_include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/freertos/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/freertos/include/esp_additions/freertos -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/freertos/port/xtensa/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/freertos/include/esp_additions -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_hw_support/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_hw_support/include/soc -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_hw_support/include/soc/esp32 -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_hw_support/port/esp32 -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_hw_support/port/esp32/private_include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/heap/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/log/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/lwip/include/apps -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/lwip/include/apps/sntp -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/lwip/lwip/src/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/lwip/port/esp32/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/lwip/port/esp32/include/arch -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/soc/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/soc/esp32 -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/soc/esp32/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/hal/esp32/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/hal/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/hal/platform_port/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_rom/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_rom/include/esp32 -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_rom/esp32 -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_common/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_system/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_system/port/soc -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_system/port/public_compat -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp32/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/xtensa/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/xtensa/esp32/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/driver/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/driver/esp32/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_pm/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_ringbuf/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/efuse/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/efuse/esp32/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/vfs/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_wifi/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_event/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_netif/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_eth/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/tcpip_adapter/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_phy/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_phy/esp32/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_ipc/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/app_trace/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_timer/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/mbedtls/port/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/mbedtls/mbedtls/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/mbedtls/esp_crt_bundle/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/app_update/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/spi_flash/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/bootloader_support/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/nvs_flash/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/pthread/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_gdbstub/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_gdbstub/xtensa -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_gdbstub/esp32 -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espcoredump/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espcoredump/include/port/xtensa -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/wpa_supplicant/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/wpa_supplicant/port/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/wpa_supplicant/esp_supplicant/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/ieee802154/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/console -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/asio/asio/asio/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/asio/port/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/bt/common/osi/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/bt/include/esp32/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/bt/common/api/include/api -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/bt/common/btc/profile/esp/blufi/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/bt/common/btc/profile/esp/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/bt/host/bluedroid/api/include/api -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/bt/esp_ble_mesh/mesh_common/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/bt/esp_ble_mesh/mesh_common/tinycrypt/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/bt/esp_ble_mesh/mesh_core -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/bt/esp_ble_mesh/mesh_core/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/bt/esp_ble_mesh/mesh_core/storage -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/bt/esp_ble_mesh/btc/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/bt/esp_ble_mesh/mesh_models/common/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/bt/esp_ble_mesh/mesh_models/client/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/bt/esp_ble_mesh/mesh_models/server/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/bt/esp_ble_mesh/api/core/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/bt/esp_ble_mesh/api/models/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/bt/esp_ble_mesh/api -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/cbor/port/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/unity/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/unity/unity/src -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/cmock/CMock/src -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/coap/port/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/coap/libcoap/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/nghttp/port/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/nghttp/nghttp2/lib/includes -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp-tls -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp-tls/esp-tls-crypto -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_adc_cal/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_hid/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/tcp_transport/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_http_client/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_http_server/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_https_ota/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_https_server/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_lcd/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_lcd/interface -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/protobuf-c/protobuf-c -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/protocomm/include/common -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/protocomm/include/security -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/protocomm/include/transports -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/mdns/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_local_ctrl/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/sdmmc/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_serial_slave_link/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_websocket_client/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/expat/expat/expat/lib -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/expat/port/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/wear_levelling/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/fatfs/diskio -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/fatfs/vfs -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/fatfs/src -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/freemodbus/freemodbus/common/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/idf_test/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/idf_test/include/esp32 -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/jsmn/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/json/cJSON -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/libsodium/libsodium/src/libsodium/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/libsodium/port_include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/mqtt/esp-mqtt/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/openssl/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/perfmon/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/spiffs/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/ulp/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/wifi_provisioning/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/rmaker_common/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_diagnostics/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/rtc_store/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_insights/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/json_parser/upstream/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/json_parser/upstream -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/json_generator/upstream -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_schedule/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp_secure_cert_mgr/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_rainmaker/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/gpio_button/button/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/qrcode/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/ws2812_led -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_littlefs/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp-dl/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp-dl/include/tool -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp-dl/include/typedef -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp-dl/include/image -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp-dl/include/math -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp-dl/include/nn -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp-dl/include/layer -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp-dl/include/detect -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp-dl/include/model_zoo -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp32-camera/driver/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp32-camera/conversions/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/dotprod/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/support/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/support/mem/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/windows/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/windows/hann/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/windows/blackman/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/windows/blackman_harris/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/windows/blackman_nuttall/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/windows/nuttall/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/windows/flat_top/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/iir/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/fir/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/math/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/math/add/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/math/sub/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/math/mul/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/math/addc/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/math/mulc/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/math/sqrt/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/matrix/mul/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/matrix/add/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/matrix/addc/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/matrix/mulc/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/matrix/sub/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/matrix/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/fft/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/dct/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/conv/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/common/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/matrix/mul/test/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/kalman/ekf/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/espressif__esp-dsp/modules/kalman/ekf_imu13states/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/fb_gfx/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/qio_qspi/include -mlongcalls -Wno-frame-address -ffunction-sections -fdata-sections -Wno-error=unused-function -Wno-error=unused-variable -Wno-error=deprecated-declarations -Wno-unused-parameter -Wno-sign-compare -ggdb -freorder-blocks -Wwrite-strings -fstack-protector -fstrict-volatile-bitfields -Wno-error=unused-but-set-variable -fno-jump-tables -fno-tree-switch-conversion -std=gnu++11 -fexceptions -fno-rtti -c -w -Os -w -x c++ -E -CC -DF_CPU=80000000L -DARDUINO=10607 -DARDUINO_ESP32_DEV -DARDUINO_ARCH_ESP32 -DARDUINO_BOARD="ESP32_DEV" -DARDUINO_VARIANT="esp32" -DARDUINO_PARTITION_default -DESP32 -DCORE_DEBUG_LEVEL=0 -DARDUINO_RUNNING_CORE=0 -DARDUINO_EVENT_RUNNING_CORE=1 -DARDUINO_USB_CDC_ON_BOOT=0 @C:\Users\Paul\AppData\Local\arduino\sketches\475ABBE31B4A19F7BB46EB55C1A3EC75/build_opt.h @C:\Users\Paul\AppData\Local\arduino\sketches\475ABBE31B4A19F7BB46EB55C1A3EC75/file_opts -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17\cores\esp32 -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17\variants\esp32 C:\Users\Paul\AppData\Local\arduino\sketches\475ABBE31B4A19F7BB46EB55C1A3EC75\sketch\_ESP32_Wroom_Orange_30pins_6Charts_5gauges_1slider_3sw_2025_09.ino.cpp -o nul Alternatives for AsyncTCP.h: [AsyncTCP@1.1.4 AsyncTCP@1.1.1] ResolveLibrary(AsyncTCP.h) -> candidates: [AsyncTCP@1.1.4 AsyncTCP@1.1.1] D:\Arduino15\packages\esp32\tools\xtensa-esp32-elf-gcc\esp-2021r2-patch5-8.4.0/bin/xtensa-esp32-elf-g++ -DHAVE_CONFIG_H -DMBEDTLS_CONFIG_FILE="mbedtls/esp_config.h" -DUNITY_INCLUDE_CONFIG_H -DWITH_POSIX -D_GNU_SOURCE -DIDF_VER="v4.4.7-dirty" -DESP_PLATFORM -D_POSIX_READER_WRITER_LOCKS -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/newlib/platform_include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/freertos/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/freertos/include/esp_additions/freertos -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/freertos/port/xtensa/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/freertos/include/esp_additions -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_hw_support/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_hw_support/include/soc -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_hw_support/include/soc/esp32 -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_hw_support/port/esp32 -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_hw_support/port/esp32/private_include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/heap/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/log/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/lwip/include/apps -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/lwip/include/apps/sntp -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/lwip/lwip/src/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/lwip/port/esp32/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/lwip/port/esp32/include/arch -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/soc/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/soc/esp32 -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/soc/esp32/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/hal/esp32/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/hal/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/hal/platform_port/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_rom/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_rom/include/esp32 -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_rom/esp32 -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_common/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_system/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_system/port/soc -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_system/port/public_compat -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp32/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/xtensa/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/xtensa/esp32/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/driver/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/driver/esp32/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_pm/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_ringbuf/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/efuse/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/efuse/esp32/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/vfs/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_wifi/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_event/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_netif/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_eth/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/tcpip_adapter/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_phy/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_phy/esp32/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_ipc/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/app_trace/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/esp_timer/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/tools/sdk/esp32/include/mbedtls/port/include -ID:\Arduino15\packages\esp32\hardware\esp32\2.0.17/to

Upload :


esptool.py v4.5.1 Serial port COM4 Connecting..... Chip is ESP32-D0WDQ6 (revision v1.0) Features: WiFi, BT, Dual Core, 240MHz, VRef calibration in efuse, Coding Scheme None Crystal is 40MHz MAC: 7c:9e:bd:54:72:f4 Uploading stub... Running stub... Stub running... Changing baud rate to 921600 Changed. Configuring flash size... Flash will be erased from 0x00001000 to 0x00005fff... Flash will be erased from 0x00008000 to 0x00008fff... Flash will be erased from 0x0000e000 to 0x0000ffff... Flash will be erased from 0x00010000 to 0x000f1fff... Compressed 18992 bytes to 13110... Writing at 0x00001000... (100 %) Wrote 18992 bytes (13110 compressed) at 0x00001000 in 0.4 seconds (effective 355.9 kbit/s)... Hash of data verified. Compressed 3072 bytes to 146... Writing at 0x00008000... (100 %) Wrote 3072 bytes (146 compressed) at 0x00008000 in 0.0 seconds (effective 540.7 kbit/s)... Hash of data verified. Compressed 8192 bytes to 47... Writing at 0x0000e000... (100 %) Wrote 8192 bytes (47 compressed) at 0x0000e000 in 0.1 seconds (effective 641.2 kbit/s)... Hash of data verified. Compressed 922928 bytes to 587272... Writing at 0x00010000... (2 %) Writing at 0x0001a562... (5 %) Writing at 0x00024afa... (8 %) Writing at 0x00035785... (11 %) Writing at 0x0003d14c... (13 %) Writing at 0x00043079... (16 %) Writing at 0x000490da... (19 %) Writing at 0x0004f40a... (22 %) Writing at 0x0005482d... (25 %) Writing at 0x0005a139... (27 %) Writing at 0x0005f82c... (30 %) Writing at 0x0006506c... (33 %) Writing at 0x0006a48e... (36 %) Writing at 0x0006f824... (38 %) Writing at 0x00074b77... (41 %) Writing at 0x00079eb3... (44 %) Writing at 0x0007f0e3... (47 %) Writing at 0x0008458b... (50 %) Writing at 0x0008978c... (52 %) Writing at 0x0008e9b9... (55 %) Writing at 0x00094534... (58 %) Writing at 0x00099c8d... (61 %) Writing at 0x0009efdb... (63 %) Writing at 0x000a4304... (66 %) Writing at 0x000a96f2... (69 %) Writing at 0x000aee24... (72 %) Writing at 0x000b4469... (75 %) Writing at 0x000b9c3d... (77 %) Writing at 0x000bfb4c... (80 %) Writing at 0x000c53eb... (83 %) Writing at 0x000cba46... (86 %) Writing at 0x000d4694... (88 %) Writing at 0x000dc69f... (91 %) Writing at 0x000e171a... (94 %) Writing at 0x000e7119... (97 %) Writing at 0x000ec58c... (100 %) Wrote 922928 bytes (587272 compressed) at 0x00010000 in 9.6 seconds (effective 770.4 kbit/s)... Hash of data verified. Leaving... Hard resetting via RTS pin...

Tools serial monitor

SOFTWARE:

Remplacement lib DHTesp par DHT
Problemes sur OWS .....c'etait un Probleme HARDWARE : inversion polarité d'alim sur iune des 2 sondes DS18B20 !
Recompliation soud Arduino IDE 236 , sans toucher aux data
data uploadées via Arduino 1.8.19 sur autre PC portable ACER
...la zonne SPIFFS n'étant pas ecrasée par un rechargement de code .

Arduino IDE 2.3.6
Hardware : Module ESP32 Orange Vroom32 ESP32 DevkitV1 2x15pins
nota : directory data chargé via Arduino IDE 1.8.19

Board : ESP32 Dev Module




Resultats

page web :

Page Web OK en 192.168.1.8 sur mon reseau Wifi Freebox.
6 Graphes
5 instruments :
2 sondes DS18B20 (sur bus OWS)
1 capteur d epression BMP085 (bus I2C)
1 capteur Humidité et Temperature (sur bus specifique)
1 ecran OLED SSD1306 4 lignes de 22 cars (bus I2C)
1 slider pour commande sortie PWM
3 switches à glissiere pour commande de 3 sorties
1 image (schema)
Heure depuis serveur NTP

affichage page web	ESP32 prototype hardware

Arduino IDE 236

* ATTENTION grosses galères :
ce qui etait OK en Arduino 1.8.19 ne l ' est plus directement...
... le directory data a été chargé via Arduino 1.8.19
... les nouvelles techniques proposées en remplacement => trop de problemes
....A caude de la version Board ESP32.
ainsi qu'aux versions des autres librairies importées
Arduino IDE 236 ayant tendance à utiliser les dernieres versions (TROP rescentes) pour ma carte ESP.

Source :
_ESP32_Orange_Wroom_30pins_6Charts_5gauges_1slider_3sw_2025_1020.ino

Compilation_
_ESP32_Wroom32_Orange_6Charts_2025_1009_IDE_236_sans_data_ESP32_2.0.17_OK.txt

Arduino 1.8.19 :
data directory
Arduino_IDE_1819_ESP32_Wroom_Orange_30pins_6Charts_5gauges_1slider_3sw_2025_10_data.zip
log file sur terminal YAT
YAT-Log-Adruino_IDE_236_ESP32_6charts_20251009-16h26.log





Test 6 Charts , 5 Gauges sur ESP32 Jaune
Devkitv1 30 pins MicroUSB connecteur
Retour sur Arduino 1.8.19

Remplacement du BMP085 Pression , par BME280 : Pression,temperature,altitude
Charts ,5 Gauges ,3 Switches, 1 Slider, 1 image
2 sondes OWS DS18B20, 1 capteur DHT11 (Humyd & Temper) , 3 cde de sorties , 1 cde sortie PWM
1 capteur BMP280 ( Temp et Pression)

ESP32 Jaune 30p microUSB Devkit V1
info compil. arduino :
Chip is ESP32-D0WD-V3 (revision 3)
Features: WiFi, BT, Dual Core, 240MHz, VRef calibration in efuse, Coding Scheme None
Crystal is 40MHz
MAC: b8:d6:1a:43:5a:04 => ESP_435A04

I2C device found at address 0x3C OLED SSD1306
I2C device found at address 0x50 non reconnue
I2C device found at address 0x68 RTC DS3231
I2C device found at address 0x76 BMP xxx Pression
Trouve 4 devices sur le Bus I2C

Probleme non résolu :
message anormal sur void printLastOperateStatus(BMP::eStatus_t eStatus)
et printLastOperateStatus(bmp.lastOperateStatus) ;
... donc supprimé ce message !

Programme :
* Board select selection Arduino..board ESP32
* Data directory contient la page html et les fichiers javas scripts
_ESP32_435A04_Jaune_30p_6Char_5Gaug_BMP280_2025_10.ino

docu :
_ESP32_435A04_Jaune_30p_6Char_5Gaug_BMP280_2025-1031.docx

Wifi_AP_STA
Acces Point ....OK sur reseau ESP_435A04 547 192.168.4.1
Station ...OK sur reseau freebox 192.168.1.5


conclusion :
meme si l'IDE 1.8.19 est poussiereux et moins performant que l' IDE 2.3.6
on conserve la facilité d'usage de transfert du directory data , permettant de tres faciles modif. page web ou javascript
surtout avec des module sESP32 anciens !

retour à l'index general
